MSC2295-BT1 Datasheet - LRC

MSC2295-BT1 NPN RF Amplifier Transistors

LESHAN RADIO COMPANY, LTD. NPN RF Amplifier Transistors Surface Mount COLLECTOR 3 MSC2295-BT1 MSC2295-CT1 3 2 2 BASE 1 EMITTER CASE 1 318D 03, STYLE1 SC 59 MAXIMUM RATINGS (T A = 25°C) Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current - Continuous Symbol V(BR)CBO V(BR)CEO V(BR)EBO IC Symbol PD TJ T stg Value 30 20 5.0 30 Max 200 150 -55 ~ +150 Unit Vdc Vdc Vdc mAdc Unit mW °C °C Symbol I CBO h FE MSC2295-BT1 MSC2295-CT1 fT C re.

MSC2295-BT1_LRC.pdf

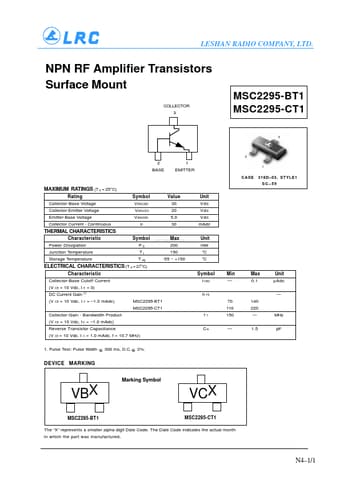

Preview of MSC2295-BT1 PDF

Datasheet Details

Part number:

MSC2295-BT1

Manufacturer:

LRC

File Size:

66.59 KB

Description:

Npn rf amplifier transistors.
