MUN2115RT1, MUN2111RT1 Datasheet - LRC

MUN2115RT1 Bias Resistor Transistor

LESHAN RADIO COMPANY, LTD. Bias Resistor Transistor PNP Silicon Surface Mount Transistor with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BRT eliminates these individual components by integrating them int.

MUN2111RT1_LRC.pdf

This datasheet PDF includes multiple part numbers: MUN2115RT1, MUN2111RT1. Please refer to the document for exact specifications by model.

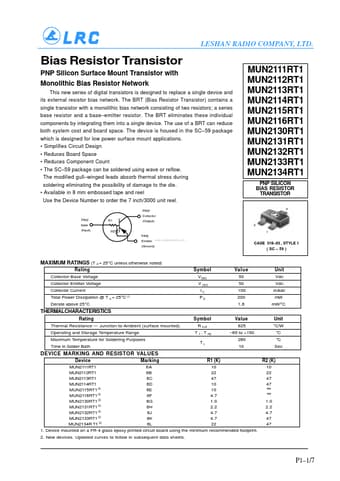

MUN2115RT1 Datasheet Preview Page 2 MUN2115RT1 Datasheet Preview Page 3

Datasheet Details

Part number:

MUN2115RT1, MUN2111RT1

Manufacturer:

LRC

File Size:

331.09 KB

Description:

Bias resistor transistor.

Note:

This datasheet PDF includes multiple part numbers: MUN2115RT1, MUN2111RT1.
Please refer to the document for exact specifications by model.
