RS3AC - Surface Mount Glass Passivated Fast Recovery Rectifiers

LRC

📥 Download Datasheet

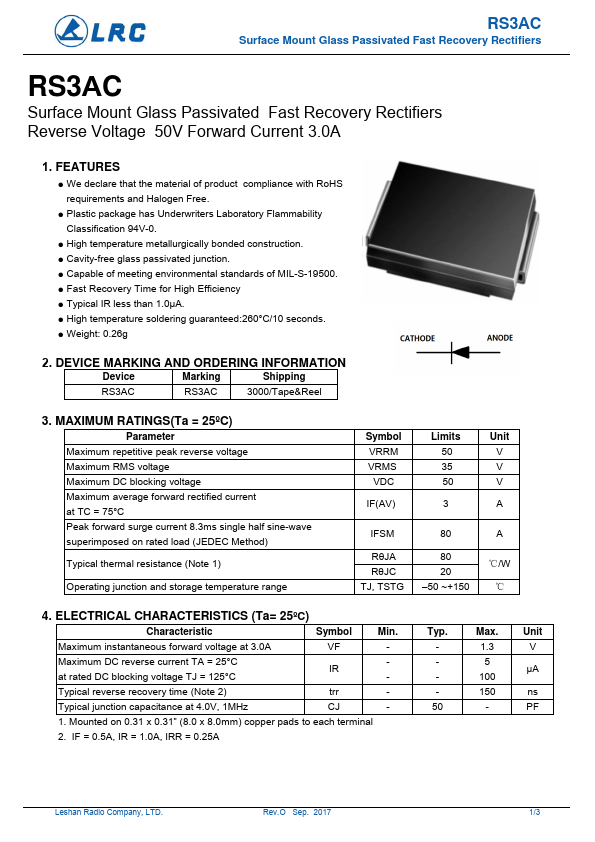

RS3AC Datasheet Preview — Preview of RS3AC PDF

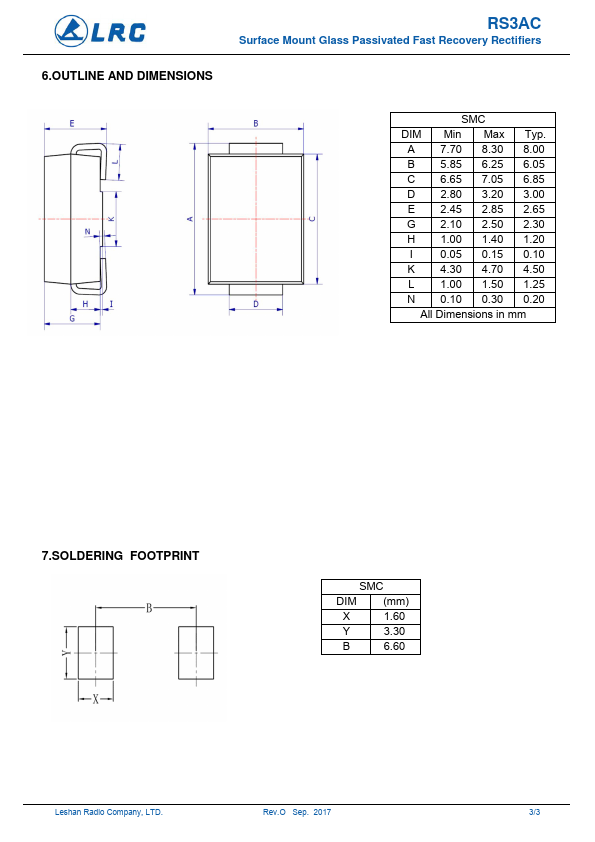

datasheet Preview Page 2

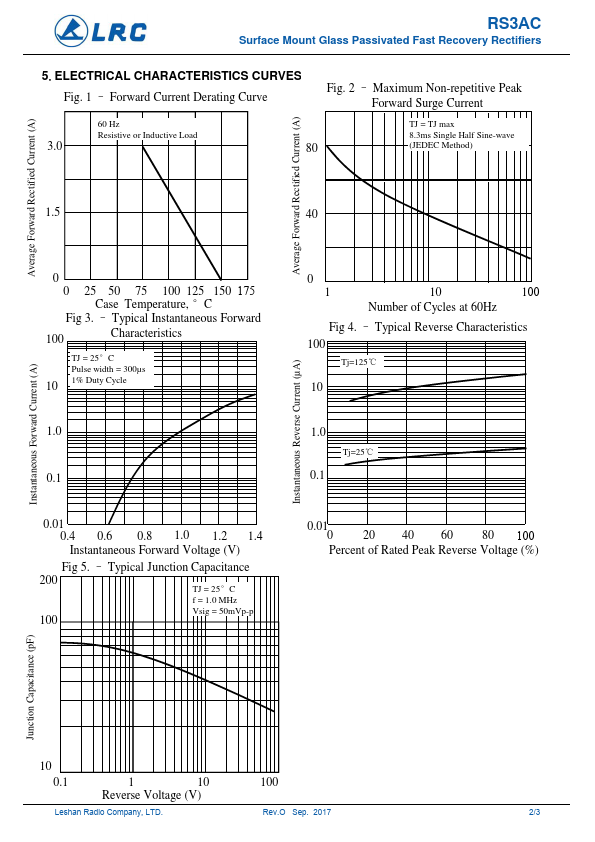

datasheet Preview Page 3

Datasheet Details

Part number	RS3AC
Manufacturer	LRC
File Size	387.23 KB
Description	Surface Mount Glass Passivated Fast Recovery Rectifiers
Datasheet	RS3AC-LRC.pdf

RS3AC Product details

Features

We declare that the material of product compliance with RoHS requirements and Halogen Free.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Cavity-free glass passivated junction.
Capable of meeting environmental standards of MIL-S-19500.
Fast Recovery Time for High Efficiency.
Typical IR less than 1.0µA.
High temperature soldering guaranteed:260°C/10 seconds.
