RS5AC - Surface Mount Glass Passivated Fast Recovery Rectifiers

LRC

📥 Download Datasheet

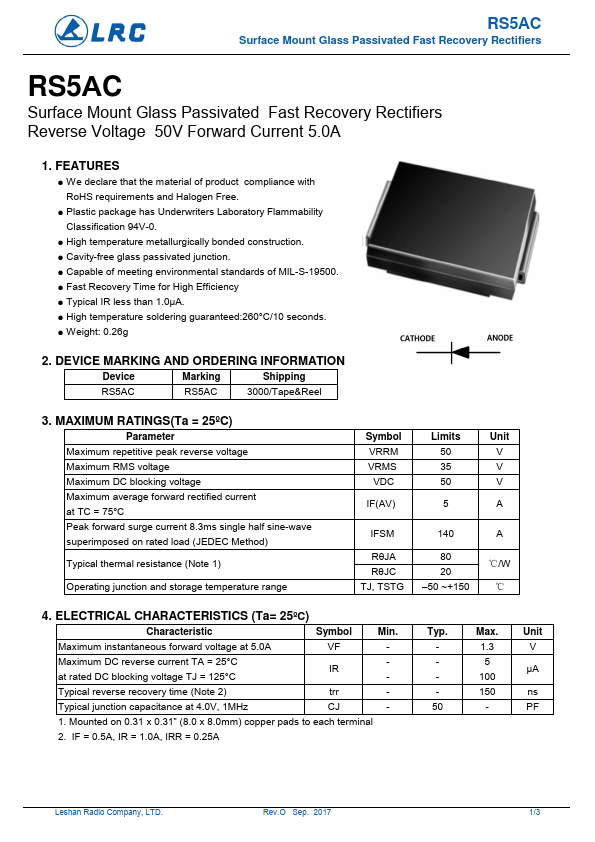

RS5AC Datasheet Preview — Preview of RS5AC PDF

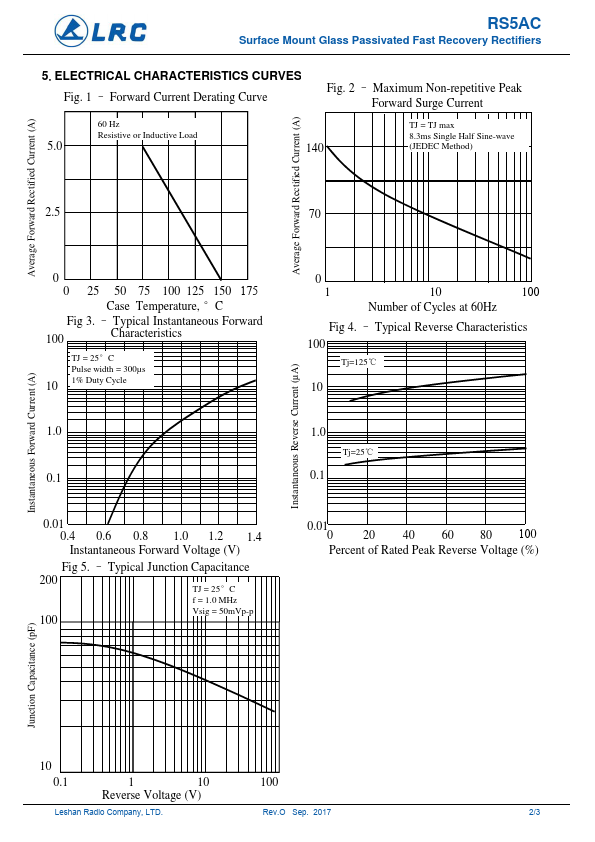

datasheet Preview Page 2

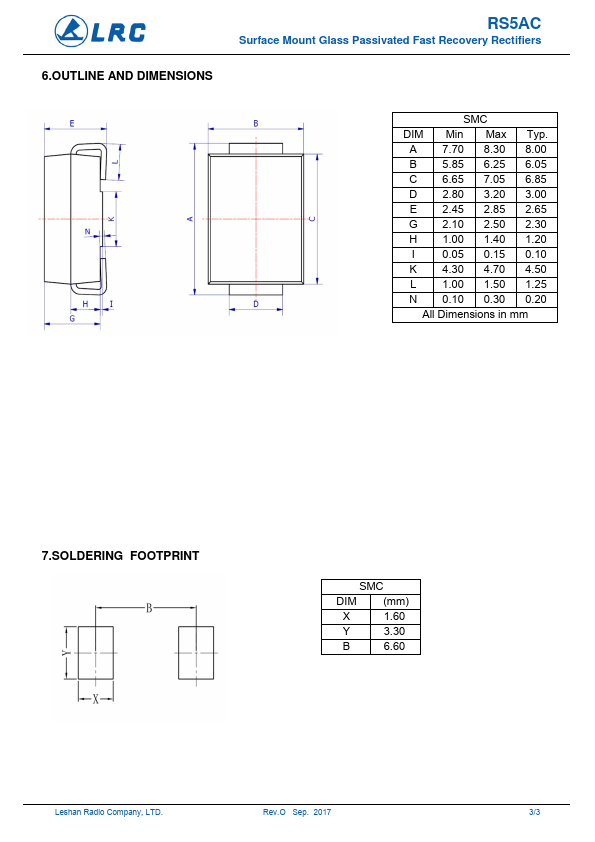

datasheet Preview Page 3

Datasheet Details

Part number	RS5AC
Manufacturer	LRC
File Size	476.71 KB
Description	Surface Mount Glass Passivated Fast Recovery Rectifiers
Datasheet	RS5AC-LRC.pdf

RS5AC Product details

Features

We declare that the material of product compliance with RoHS requirements and Halogen Free.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Cavity-free glass passivated junction.
Capable of meeting environmental standards of MIL-S-19500.
Fast Recovery Time for High Efficiency.
Typical IR less than 1.0µA.
High temperature soldering guaranteed:260°C/10 seconds.
