SB3150 (SB3150 / SB3200) Schottky Barrier Rectifiers

SB3150 Description

SB3150&SB3200 Schottky Barrier Rectifiers Reverse Voltage 150V&200V Forward Current 3.0A .

SB3150 Applications

* Guarding for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: JEDEC DO-201AD, molded plastic over sky die Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mou

📥 Download Datasheet

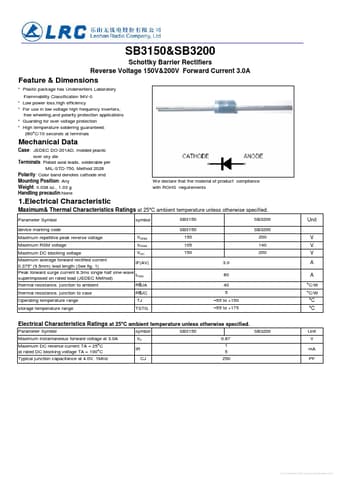

Preview of SB3150 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB3150
Manufacturer
LRC
File Size
219.01 KB
Datasheet
SB3150_LRC.pdf
Description
(SB3150 / SB3200) Schottky Barrier Rectifiers
