SB30-03F - 30V/ 3A Rectifier

SB30-03F Description

Ordering number:EN2998 SB30-03F Schottky Barrier Diode 30V, 3A Rectifier Applications * High frequency rectification (switching regulators, conv.

SB30-03F Features

* Low forward voltage (VF max=0.55V).
* Fast reverse recovery time (trr max=30ns).
* Low switching noise.
* Low leakage current and high reliability due to highly reliable planar structure. A:Anode C:Cathode SANYO:TO-126LP Specifications Absolute Maximum Ratings at Ta = 25˚C Parame

📥 Download Datasheet

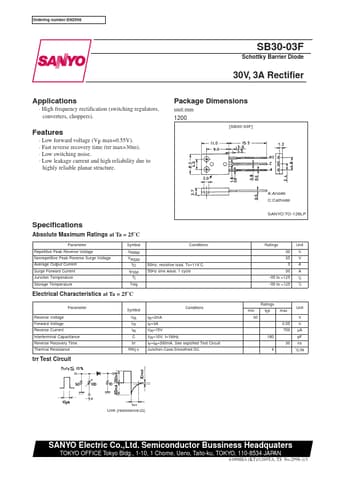

Preview of SB30-03F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB30-03F
Manufacturer
Sanyo Semicon Device
File Size
78.36 KB
Datasheet
SB30-03F_SanyoSemiconDevice.pdf
Description
30V/ 3A Rectifier
