SB30-03Z Datasheet, Rectifier, Sanyo Semicon Device

SB30-03Z Features

• Rectifier
• Low forward voltage (VF max=0.55V).
• Fast reverse recovery time (trr max=30ns).
• Low switching noise.
• Low leakage current and high reliability due

PDF File Details

Part number:

SB30-03Z

Manufacturer:

Sanyo Semicon Device

File Size:

70.64kb

Download:

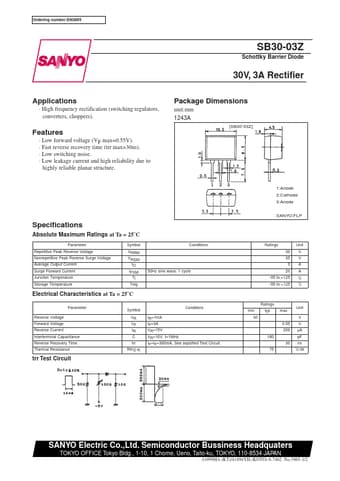

📄 Datasheet

Description:

30v/ 3a rectifier.

SB30-03Z Application

• Applications
• High frequency rectification (switching regulators, converters, choppers). Package Dimensions unit:mm 1243A [SB30-03Z] Feat
