SB30-03T

30V/ 3A Rectifier

SB30-03T Features

* Low forward voltage (VF max=0.55V).

* Fast reverse recovery time (trr max=30ns).

* Low switching noise.

* Low leakage current and high reliability due to highly reliable planar structure. 1:No Contact 2:Cathode 3:Anode 4:Cathode SANYO:TP trr Test Circuit unit:mm 1256A [SB30-03T]

SB30-03T Datasheet (80.03 KB)

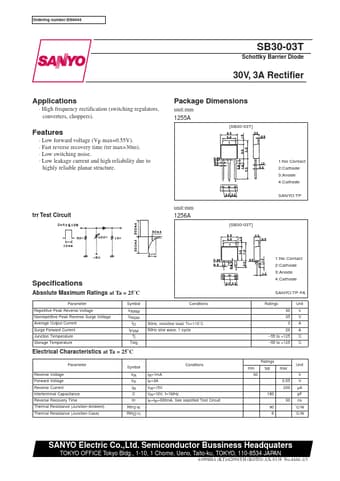

Preview of SB30-03T PDF

Datasheet Details

Part number:

SB30-03T

Manufacturer:

Sanyo Semicon Device

File Size:

80.03 KB

Description:

30v/ 3a rectifier.
Ordering number:EN4444 SB30-03T Schottky Barrier Diode 30V, 3A Rectifier Applications
* High frequency rectification (switching regulators, conv.
