SB30-09J

90V/ 3A Rectifier

SB30-09J Features

* Low forward voltage (VF max=0.85V).

* Fast reverse recovery time (trr max=30ns).

* Low switching noise.

* Low leakage current and high reliability due to highly reliable planar structure.

* Micaless package facilitaing easy mounting. A:Anode C:Cathode A:Anode SANYO:TO-220ML Sp

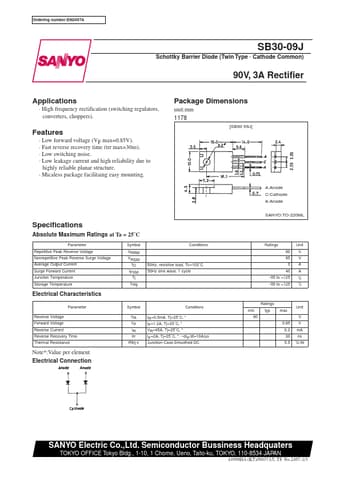

SB30-09J Datasheet (80.69 KB)

Preview of SB30-09J PDF

Datasheet Details

Part number:

SB30-09J

Manufacturer:

Sanyo Semicon Device

File Size:

80.69 KB

Description:

90v/ 3a rectifier.
Ordering number:EN2497A SB30-09J Schottky Barrier Diode (Twin Type
* Cathode Common) 90V, 3A Rectifier Applications
* High frequency rectifi.
