SB30-09

90V/ 3A Rectifier

SB30-09 Features

* Low forward voltage (VF max=0.85V).

* Fast reverse recovery time (trr max=30ns).

* Low switching noise.

* Low leakage current and high reliability due to highly reliable planar structure. A:Anode C:Cathode JEDEC:TO-220AB EIAJ:SC-46 Specifications Absolute Maximum Ratings at Ta =

SB30-09 Datasheet (81.73 KB)

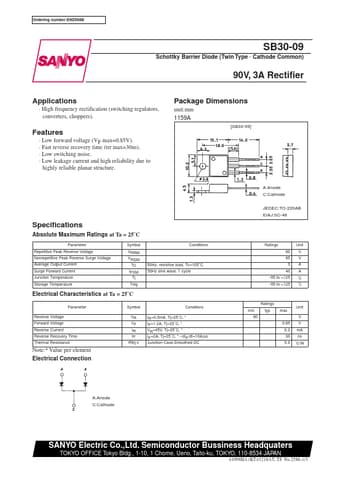

Preview of SB30-09 PDF

Datasheet Details

Part number:

SB30-09

Manufacturer:

Sanyo Semicon Device

File Size:

81.73 KB

Description:

90v/ 3a rectifier.
Ordering number:EN2586B SB30-09 Schottky Barrier Diode (Twin Type
* Cathode Common) 90V, 3A Rectifier Applications
* High frequency rectific.
