SB30-04A Datasheet, Rectifier, Sanyo Semicon Device

SB30-04A Features

  • Rectifier
  • Low forward voltage (VF max=0.55V).
  • Fast reverse recovery time.
  • High Average rectified current (IO=3.0A). C:Cathode A:Anode Specifications Absolute Maxim

PDF File Details

Part number:

SB30-04A

Manufacturer:

Sanyo Semicon Device

File Size:

61.88kb

Download:

📄 Datasheet

Description:

40v/ 3.0a rectifier.

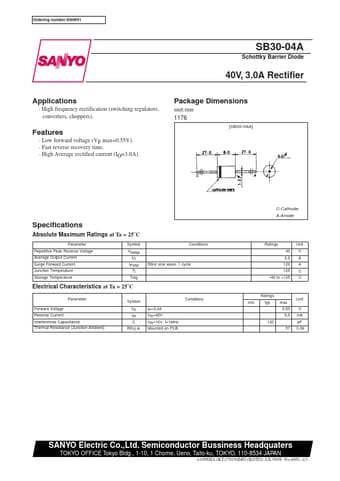

Datasheet Preview: SB30-04A 📥 Download PDF (61.88kb)
Page 2 of SB30-04A Page 3 of SB30-04A

SB30-04A Application

  • Applications
  • High frequency rectification (switching regulators, converters, choppers). Package Dimensions unit:mm 1176 [SB30-04A] Featu

TAGS

SB30-04A
40V
3.0A
Rectifier
Sanyo Semicon Device
