LS7030 - 8 DECADE MULTIPLEXED COUNTER

Datasheet Summary

Description

The LS7030 is a monolithic, ion implanted MOS Silicon Gate, 8 decade up counter.

The circuit includes latches, multiplexer, leading zero blanking and 7 segment data outputs.

8 DECADE UP COUNTER The eight decade ripple through counter increments on the negative edge of the input count pulse.

Features

  • DC to 7.5 MHz Count Frequency.
  • Multiplexed BCD and 7 Segment Outputs.
  • DC to 500 kHz Scan Frequency.
  • +4.75V to +15V Operation (VDD-VSS).
  • Compatible with CMOS Logic.
  • High Input Noise Immunity.
  • Counter Output Latches.
  • Leading Zero Blanking.
  • Low Power Dissipation.
  • All inputs protected.
  • 40 Pin DIP- See Figure 1.

📥 Download Datasheet

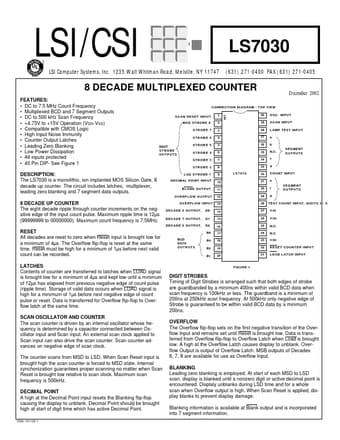

Datasheet preview – LS7030

Datasheet Details

Part number LS7030
Manufacturer LSI Computer Systems
File Size 66.46 KB
Description 8 DECADE MULTIPLEXED COUNTER
Datasheet download datasheet LS7030 Datasheet
Additional preview pages of the LS7030 datasheet.

📁 Similar Datasheet

  • LS700AT9001 - TFT LCD (Chi Mei)
  • LS7055 - 6 DECADE PREDETERMINING UP - DOWN COUNTER (LSI)
  • LS7056 - 6 DECADE PREDETERMINING UP - DOWN COUNTER (LSI)
  • LS7060C - (LS7060C / LS7061C) 32 BIT BINARY UP COUNTER (LSI)
  • LS7061C - (LS7060C / LS7061C) 32 BIT BINARY UP COUNTER (LSI)
  • LS7082N - QUADRATURE CLOCK CONVERTER (LSI)
  • LS7082N1 - QUADRATURE CLOCK CONVERTER (LSI)
  • LS7083N - QUADRATURE CLOCK CONVERTER (LSI)
  • LS7083NS-14 - QUADRATURE CLOCK CONVERTER (LSI)
  • LS7084N - QUADRATURE CLOCK CONVERTER (LSI)
Other Datasheets by LSI Computer Systems
  • LS7031 - 6 DECADE MOS UP COUNTER WITH 8 DECADE LATCH AND MULTIPLEXER
  • LS7060 - 32 BIT/DUAL 16 BIT BINARY UP COUNTER WITH BYTE MULTIPLEXED THREE-STATE OUTPUTS
  • LS7061 - 32 BIT/DUAL 16 BIT BINARY UP COUNTER WITH BYTE MULTIPLEXED THREE-STATE OUTPUTS
  • LS7062 - 32 BIT/DUAL 16 BIT BINARY UP COUNTER WITH BYTE MULTIPLEXED THREE-STATE OUTPUTS
  • LS7063 - 32 BIT/DUAL 16 BIT BINARY UP COUNTER WITH BYTE MULTIPLEXED THREE-STATE OUTPUTS
  • LS7082 - QUADRATURE CLOCK CONVERTER
  • LS7083 - QUADRATURE CLOCK CONVERTER
  • LS7084 - QUADRATURE CLOCK CONVERTER

Full PDF Text Transcription

Click to expand full text
LSI/CSI UL ® LS7030 (631) 271-0400 FAX (631) 271-0405 December 2002 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A3800 8 DECADE MULTIPLEXED COUNTER FEATURES: • DC to 7.5 MHz Count Frequency • Multiplexed BCD and 7 Segment Outputs • DC to 500 kHz Scan Frequency • +4.75V to +15V Operation (VDD-VSS) • Compatible with CMOS Logic • High Input Noise Immunity • Counter Output Latches • Leading Zero Blanking • Low Power Dissipation • All inputs protected • 40 Pin DIP- See Figure 1 DESCRIPTION: The LS7030 is a monolithic, ion implanted MOS Silicon Gate, 8 decade up counter. The circuit includes latches, multiplexer, leading zero blanking and 7 segment data outputs.
