LS7056, LS7055 Datasheet - LSI

LS7056 6 DECADE PREDETERMINING UP - DOWN COUNTER

The LS7055/LS7056 is a MOS synchronous 6 decade Up/Down counter. The circuit includes storages and comparators, zero detect, automatic presetting and resetting, output latches, multiplexed output BCD and seven segment data. Thumbwheel switches can be used to provide BCD data to the storage networks.

LS7056 Features

* +4.75V to +15V (Vss - VDD)

* Preset, Presignal and Mainsignal Store

* DC to 250kHz Count Frequency

* Fully Synchronous Operation Three Comparators with Output Flags Automatic or Manual Preset/Reset Control

* Thumbwheel Interface for Storage Selects

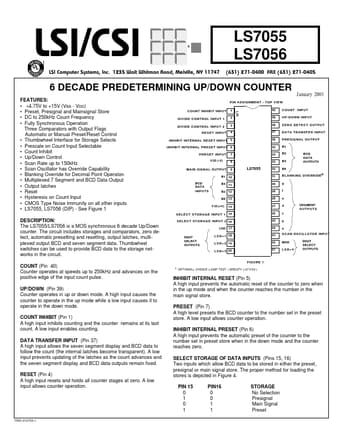

LS7055-LSI.pdf

LS7056 Datasheet Preview — This datasheet PDF includes multiple part numbers: LS7056, LS7055. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LS7056, LS7055

Manufacturer:

LSI

File Size:

162.46 KB

Description:

6 decade predetermining up - down counter.

Note:

This datasheet PDF includes multiple part numbers: LS7056, LS7055.
Please refer to the document for exact specifications by model.
