LS7561 Datasheet, Controller, LSI Computer Systems

LS7561 Features

  • Controller
  • Open loop motor control
  • Tachometer output for closed loop motor control
  • Error Amplifier and PWM Speed Comparator with full accessibility
  • High noi

PDF File Details

Part number:

LS7561

Manufacturer:

LSI Computer Systems

File Size:

97.92kb

Download:

📄 Datasheet

Description:

Brushless dc motor controller. The LS7560/LS7561 are CMOS integrated circuits designed to control three or four phase brushless DC motors in a closed or open loop c

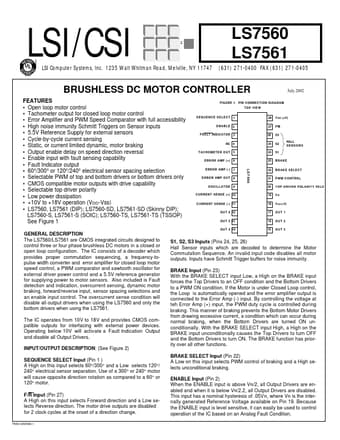

Datasheet Preview: LS7561 📥 Download PDF (97.92kb)
