L64118 Datasheet - LSI Logic

L64118 MPEG-2 Transport Controller

L64118 MPEG-2 Transport Controller with Embedded MIPS CPU (TR4101) Preliminary Datasheet LSI Logic’s L64118 MPEG-2 Transport Controller with Embedded MIPS CPU (TR4101) is a highly integrated set-top box control and communication device, combining most of the logic needed for a digital broadcast system (DBS) or cable set-top box onto a single chip. The L64118’s embedded 32-bit TinyRISC™ MIPS CPU core provides processing power to support transport and system data, as well as general-purpose system.

L64118 Features

* The L64118 provides additional system features for a set-top box application, including: Channel

* Compliance with ISO/IEC 13818-1 (MPEG-2) Transport specifications Sustained rates up to 90 Mbits/s serial and up to 13.0 Mbytes/s parallel transport stream input interface D

L64118_LSILogic.pdf

Preview of L64118 PDF

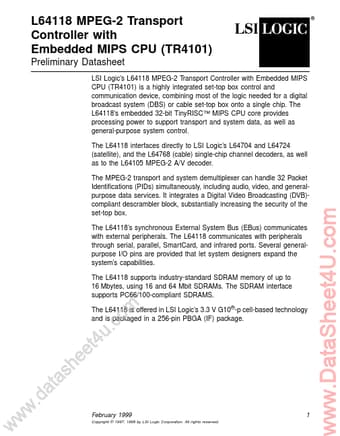

L64118 Datasheet Preview Page 2 L64118 Datasheet Preview Page 3

Datasheet Details

Part number:

L64118

Manufacturer:

LSI Logic

File Size:

893.29 KB

Description:

Mpeg-2 transport controller.
