L64734 Datasheet - LSI Logic

L64734 (L64733) Tuner and Satellite Receiver Chipset

L64733/L64734 Tuner and Satellite Receiver Chipset Datasheet The L64733/34 chipset is designed specifically to meet the needs of satellite broadcast digital TV and is compliant with the European digital video broadcast (DVB-S) standard and the technical specifications for DSS systems. The chipset forms a complete “L-Band to bits” system. A typical application of the L64733/34 chipset is satellite digital TV reception in accordance with ETS 300 421. Figure 1 shows the L64733/34 chipset satellite re.

L64734 Features

* and Benefits System Features

* Direct down-conversion Integrated programmable cut-off low-pass filters for variable-rate operation Dual AGC for optimizing performance with respect to intermodulation and noise Integrated synthesizer Integrated q

L64734 Datasheet (478.08 KB)

Preview of L64734 PDF

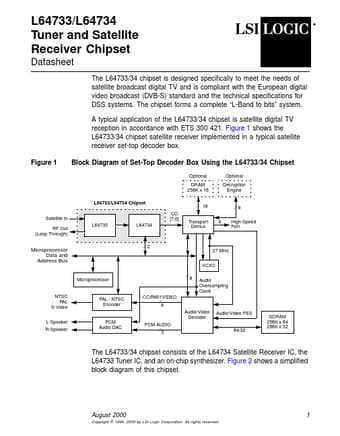

L64734 Datasheet Preview Page 2 L64734 Datasheet Preview Page 3

Datasheet Details

Part number:

L64734

Manufacturer:

LSI Logic

File Size:

478.08 KB

Description:

(l64733) tuner and satellite receiver chipset.
