TiWi-BLE - Integrated Transceiver Module

📥 Download Datasheet

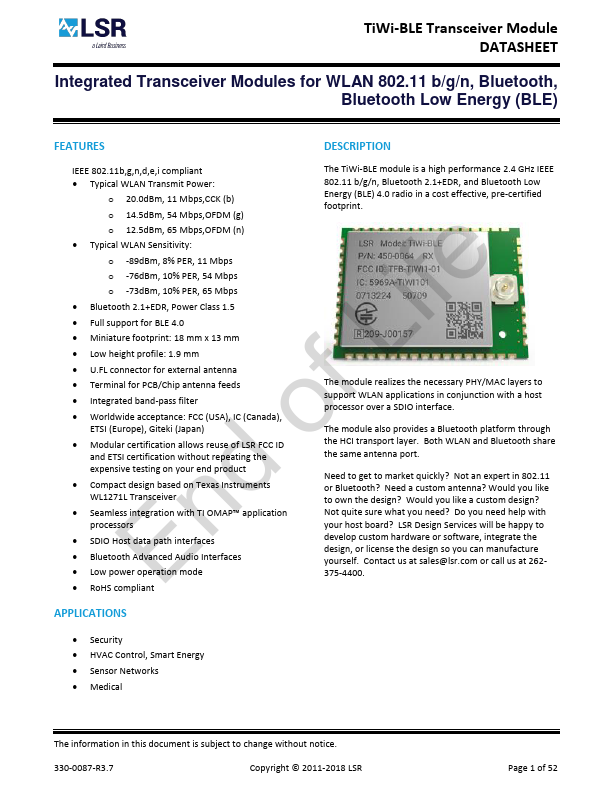

Preview of TiWi-BLE PDF

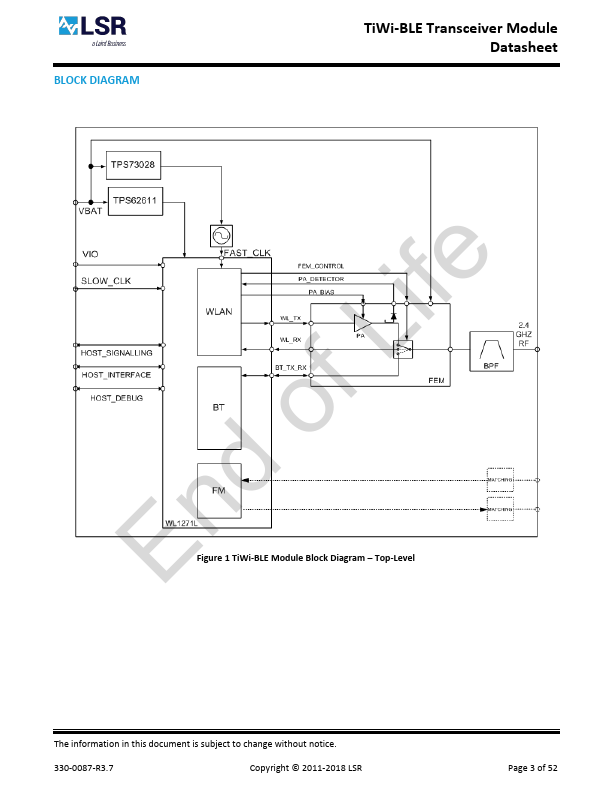

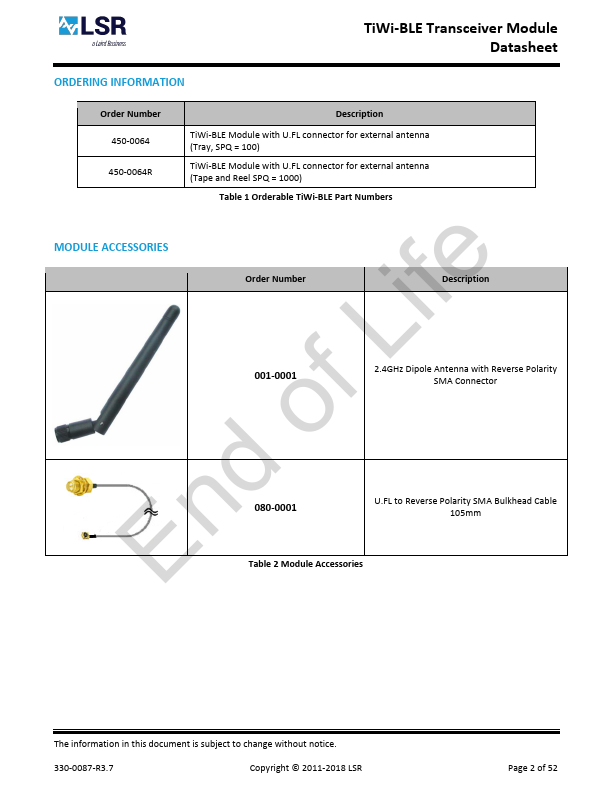

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TiWi-BLE
Manufacturer LSR
File Size 2.08 MB
Description Integrated Transceiver Module
Datasheet download datasheet TiWi-BLE-LSR.pdf

TiWi-BLE Product details

Description

IEEE 802.11b,g,n,d,e,i compliant Typical WLAN Transmit Power: o 20.0dBm, 11 Mbps,CCK (b) o 14.5dBm, 54 Mbps,OFDM (g) o 12.5dBm, 65 Mbps,OFDM (n) Typical WLAN Sensitivity: o -89dBm, 8% PER, 11 Mbps o -76dBm, 10% PER, 54 Mbps o -73dBm, 10% PER, 65 Mbps Bluetooth 2.1+EDR, Power Class 1.5 Full support for BLE 4.0 Miniature footprint: 18 mm x 13 mm Low height profile: 1.9 mm U.FL connector for external antenna
