2SA1980 - SILICON PNP TRANSISTOR

LZG

📥 Download Datasheet

2SA1980 Datasheet Preview — Preview of 2SA1980 PDF

datasheet Preview Page 2

Datasheet Details

Part number	2SA1980
Manufacturer	LZG
File Size	236.83 KB
Description	SILICON PNP TRANSISTOR
Datasheet	2SA1980-LZG.pdf

2SA1980 Product details

Features

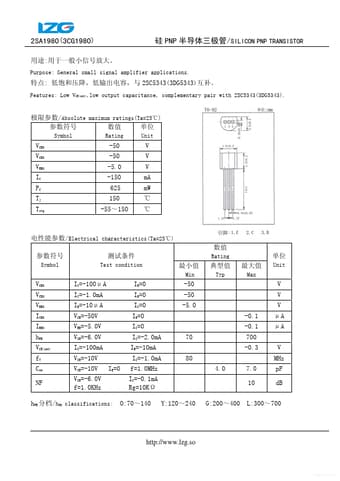

Low VCE(sat),low output capacitance, complementary pair with 2SC5343(3DG5343). /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC PC Tj Tstg -50 -50 -5.0 -150 625 150 -55～150 V V V mA mW ℃ ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition Rating Max Unit Min Typ VCBO VCEO VEBO ICBO IEBO hFE VCE(sat) fT Cob NF IC=-100μA IC=-1.0mA IE=-10μA VCB=-50V VEB=-5.0V VCE=-6.0V IC=-100mA VCE=-10V VCB=-10V VCE=-6.0V f=1.0KHz IE=0 IE=0 IB=0 IC=0 IE=0 IC=0.
