2SA953M - SILICON PNP TRANSISTOR

Product Overview

LZG

📥 Download Datasheet

2SA953M SILICON PNP TRANSISTOR by LZG - Datasheet Preview — Datasheet preview – 2SA953M

Datasheet Details

Part number	2SA953M
Manufacturer	LZG
File Size	342.35 KB
Description	SILICON PNP TRANSISTOR
Datasheet	2SA953M Datasheet
Additional preview pages of the 2SA953M datasheet.

Product details

Features

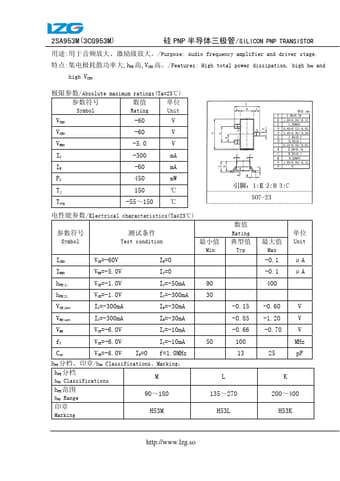

High total power dissipation, high hFE and high VCEO. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO -60 V VCEO -60 V VEBO -5.0 V IC -300 mA IB -60 mA PC 450 mW Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition Min Rating Typ ICBO VCB=-60V IE=0 IEBO VEB=-5.0V IC=0 hFE(1) VCE=-1.0V IC=-50mA 90 hFE(2) VCE=-1.0V IC=-300mA 30 VCE(sat) IC=-300mA IB=-30mA -0.15 VBE(sat) IC=-300mA IB=-30mA -0.85 VBE VCE=-6.
