2SA950 Datasheet - Toshiba Semiconductor

2SA950 TRANSISTOR

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA950 2SA950 Audio Power Amplifier Applications Unit: mm High hFE: hFE = 100~320 1 W output applications Complementary to 2SC2120 Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating -35 -30 -5 -800 -.

2SA950_ToshibaSemiconductor.pdf

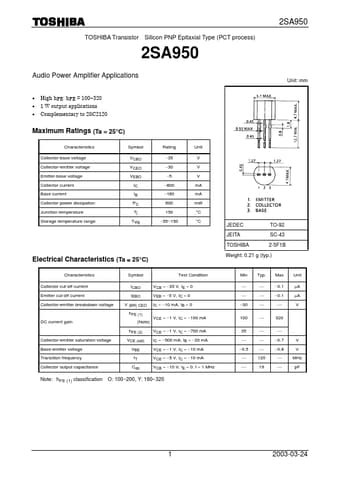

Preview of 2SA950 PDF
2SA950 Datasheet Preview Page 2 2SA950 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA950

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

78.84 KB

Description:

Transistor.
