Part number:
2SB1184
Manufacturer:
LZG
File Size:
213.21 KB
Description:
Silicon pnp transistor.

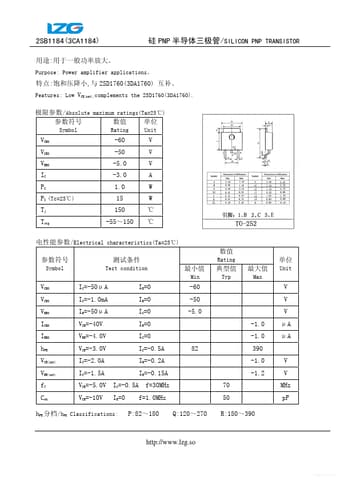

* Low VCE(sat),complements the 2SD1760(3DA1760). /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC PC PC (Tc=25℃) Tj Tstg -60 -50 -5.0 -3.0 1.0 15 150 -55～150 V V V A W W ℃ ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition Rating Max Unit Min Typ VC
2SB1184
LZG
213.21 KB
Silicon pnp transistor.
