3256E Datasheet - Lattice Semiconductor

3256E In-System Programmable High Density PLD

The ispLSI 3256E is a High Density Programmable Logic Device containing 512 Registers, 256 Universal I/O pins, five Dedicated Clock Input Pins, 16 Output Routing Pools (ORP) and a Global Routing Pool (GRP) which allows complete inter-connectivity between all of these elements. The ispLSI 3256E featu.

3256E Features

* HIGH-DENSITY PROGRAMMABLE LOGIC

* 256 I/O Pins

* 12000 PLD Gates

* 512 Registers

* High Speed Global Interconnect

* Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.

* Small Logic Block Size for Random Logic

3256E_LatticeSemiconductor.pdf

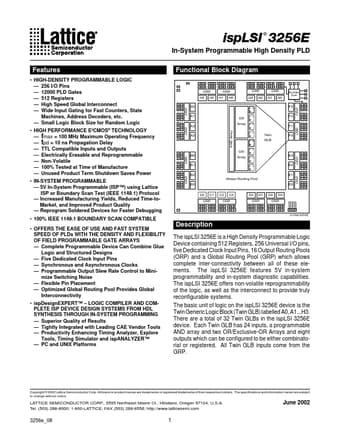

3256E Datasheet Preview — Preview of 3256E PDF

Datasheet Details

Part number:

3256E

Manufacturer:

Lattice Semiconductor

File Size:

159.16 KB

Description:

In-system programmable high density pld.
