GAL16V8, GAL - High Performance E2CMOS PLD Generic Array Logic

GAL16V8 Description

GAL16V8 High Performance E2CMOS PLD Generic Array Logic™ .
The GAL16V8, at 3.

GAL16V8 Features

* HIGH PERFORMANCE E2CMOS® TECHNOLOGY
* 3.5 ns Maximum Propagation Delay
* Fmax = 250 MHz
* 3.0 ns Maximum from Clock Input to Data Output
* UltraMOS® Advanced CMOS Technology
* 50% to 75% REDUCTION IN POWER FROM BIPOLAR
* 75mA Typ Icc on Low P

GAL16V8 Applications

* INCLUDE:
* DMA Co. trol
* State Machi. e Co. trol
* High Speed Graphics Processi. g
* Sta. dard Logic Speed Upgrade
* ELECTRONIC SIGNATURE FOR IDENTIFICATION I 8 I OLMC OE Fu. ctio. al Block Diagram I/CLK CLK 8 I 8 I OLMC I/O/Q OLMC I/O/Q PROGRAMMABLE AND-ARRA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GAL16V8, GAL. Please refer to the document for exact specifications by model.

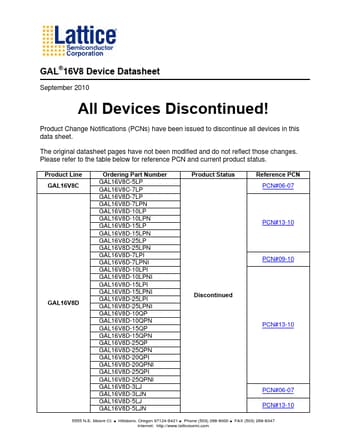

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GAL16V8, GAL
Manufacturer
Lattice Semiconductor
File Size
722.63 KB
Datasheet
GAL-16V.pdf
Description
High Performance E2CMOS PLD Generic Array Logic
Note
This datasheet PDF includes multiple part numbers: GAL16V8, GAL.
Please refer to the document for exact specifications by model.
