GAL16V8Z, GAL - Zero Power E2CMOS PLD

GAL16V8Z Description

GAL16V8Z GAL16V8ZD Zero Power E2CMOS PLD .
The GAL16V8Z and GAL16V8ZD, at 100 µA standby current and 12ns propagation delay provides the highest speed and lowest DESCRIPTION power combination P.

GAL16V8Z Features

* ZERO POWER E2CMOS TECHNOLOGY
* 100µA Standby Current
* Input Transition Detection on GAL16V8Z
* Dedicated Power-down Pin on GAL16V8ZD
* Input and Output Latching During Power Down
* HIGH PERFORMANCE E2CMOS TECHNOLOGY
* 12 ns Maximum Propagati

GAL16V8Z Applications

* INCLUDE:
* Battery Powered Systems
* DMA Control
* State Machine Control
* High Speed Graphics Processing
* ELECTRONIC SIGNATURE FOR IDENTIFICATION I 8 I OLMC OE Functional Block Diagram I/CLK CLK 8 I 8 I OLMC I/O/Q OLMC I/O/Q PROGRAMMABLE AND-ARRAY (64

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GAL16V8Z, GAL. Please refer to the document for exact specifications by model.

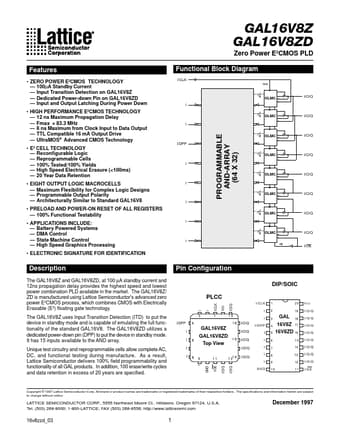

datasheet Preview Page 2 datasheet Preview Page 3
