GAL20LV8ZD - Low Voltage/ Zero Power E2CMOS PLD Generic Array Logic

GAL20LV8ZD Description

GAL20LV8ZD Low Voltage, Zero Power E2CMOS PLD Generic Array Logic™ .
The GAL20LV8ZD, at 100 µA standby current and 15ns propagation delay provides the highest speed low-voltage PLD available in the market.

GAL20LV8ZD Features

* 3.3V LOW VOLTAGE, ZERO POWER OPERATION
* JEDEC Compatible 3.3V Interface Standard
* Interfaces with Standard 5V TTL Devices
* 50µA Typical Standby Current (100µA Max. )
* 45mA Typical Active Current (55mA Max. )
* Dedicated Power-down Pin
* HIG

GAL20LV8ZD Applications

* INCLUDE:
* Glue Logic for 3.3V Systems
* Ideal for Mixed 3.3V and 5V Systems
* ELECTRONIC SIGNATURE FOR IDENTIFICATION 2 Functional Block Diagram I/CLK I I IMUX CLK 8 OLMC I 8 DPP OLMC I/O/Q I/O/Q PROGRAMMABLE AND-ARRAY (64 X 40) 8 OLMC I/O/Q I 8 OLMC I/O/Q I 8

📥 Download Datasheet

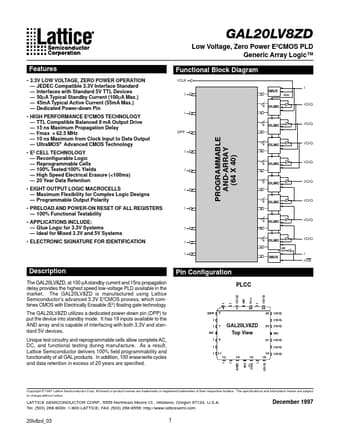

Preview of GAL20LV8ZD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GAL20LV8ZD
Manufacturer
Lattice Semiconductor
File Size
284.87 KB
Datasheet
GAL20LV8ZD_LatticeSemiconductor.pdf
Description
Low Voltage/ Zero Power E2CMOS PLD Generic Array Logic
