GAL20RA10, GAL - High-Speed Asynchronous E2CMOS PLD Generic Array Logic

GAL20RA10 Description

GAL20RA10 High-Speed Asynchronous E2CMOS PLD Generic Array Logic™ .
The GAL20RA10 combines a high performance CMOS process with electrically erasable (E2) floating gate technology to provide the highest speed performan.

GAL20RA10 Features

* HIGH PERFORMANCE E2CMOS ® TECHNOLOGY
* 7.5 ns Maximum Propagation Delay
* Fmax = 83.3 MHz
* 9 ns Maximum from Clock Input to Data Output
* TTL Compatible 8 mA Outputs
* UltraMOS® Advanced CMOS Technology
* 50% to 75% REDUCTION IN POWER FROM B

GAL20RA10 Applications

* INCLUDE:
* State Machine Control
* Standard Logic Consolidation
* Multiple Clock Logic Designs
* ELECTRONIC SIGNATURE FOR IDENTIFICATION 2 Functional Block Diagram PL 8 I OLMC I/O/Q 8 I OLMC I/O/Q 8 I OLMC I/O/Q PROGRAMMABLE AND-ARRAY (80X40) 8 OLMC I

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GAL20RA10, GAL. Please refer to the document for exact specifications by model.

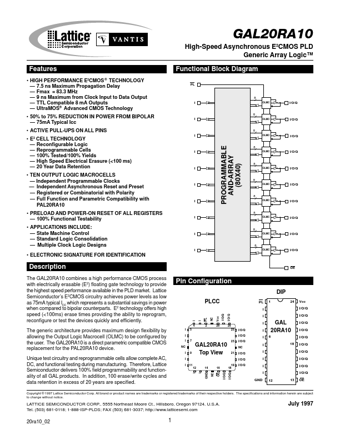

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GAL20RA10, GAL
Manufacturer
Lattice Semiconductor
File Size
240.31 KB
Datasheet
GAL-20R.pdf
Description
High-Speed Asynchronous E2CMOS PLD Generic Array Logic
Note
This datasheet PDF includes multiple part numbers: GAL20RA10, GAL.
Please refer to the document for exact specifications by model.
