GAL20VP8 - High-Speed E2CMOS PLD Generic Array Logic

GAL20VP8 Description

GAL20VP8 High-Speed E2CMOS PLD Generic Array Logic™ .
The GAL20VP8, with 64 mA drive capability and 15 ns maximum propagation delay time is ideal for Bus and Memory control applications.

GAL20VP8 Features

* HIGH DRIVE E2CMOS® GAL® DEVICE
* TTL Compatible 64 mA Output Drive
* 15 ns Maximum Propagation Delay
* Fmax = 80 MHz
* 10 ns Maximum from Clock Input to Data Output
* UltraMOS® Advanced CMOS Technology
* ENHANCED INPUT AND OUTPUT FEATURES

GAL20VP8 Applications

* INCLUDE:
* Ideal for Bus Control & Bus Arbitration Logic
* Bus Address Decode Logic
* Memory Address, Data and Control Circuits
* DMA Control
* ELECTRONIC SIGNATURE FOR IDENTIFICATION 2 Functional Block Diagram I/CLK I I IMUX CLK 8 I 8 I OLMC I/O/Q OLMC

📥 Download Datasheet

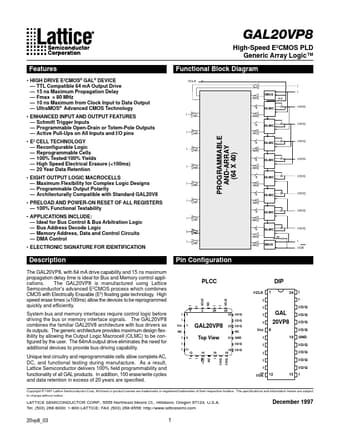

Preview of GAL20VP8 PDF
