ISPPAC10, In-System Programmable Analog Circuit

ispPAC 10 ® In-System Programmable Analog Circuit .
The ispPAC10 is a member of the Lattice family of InSystem Programmable analog circuits, digitally configured via nonvolatile E2CMOS technology.

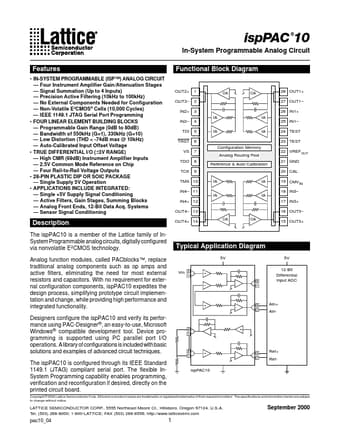

datasheet Preview Page 1 from Datasheet4u.com

ISPPAC10_LatticeSemiconductor.pdf

ISPPAC10 Datasheet Preview — Preview of ISPPAC10 PDF

Datasheet Details

Part number:

ISPPAC10

Manufacturer:

Lattice Semiconductor

File Size:

415.46 KB

Description:

In-System Programmable Analog Circuit

Features

* IN-SYSTEM PROGRAMMABLE (ISP™) ANALOG CIRCUIT
* Four Instrument Amplifier Gain/Attenuation Stages
* Signal Summation (Up to 4 Inputs)
* Precision Active Filtering (10kHz to 100kHz)
* No External Components Needed for Configuration
* Non-Volatile E2CMO

Applications

* INCLUDE INTEGRATED:
* Single +5V Supply Signal Conditioning
* Active Filters, Gain Stages, Summing Blocks
* Analog Front Ends, 12-Bit Data Acq. Systems
* Sensor Signal Conditioning Functional Block Diagram OUT2+ OUT2
* IN2+ IN2
* TDI TRST VS TDO TCK 1
