ispLSI2032E In-System Programmable SuperFAST High Density PLD

ispLSI2032E Description

ispLSI® 2032E In-System Programmable SuperFAST™ High Density PLD .

ispLSI2032E Features

* Functional Block Diagram
* SuperFAST HIGH DENSITY IN-SYSTEM PROGRAMMABLE LOGIC
* 1000 PLD Gates
* 32 I/O Pins, Two Dedicated Inputs
* 32 Registers
* High Speed Global Interconnect
* Wide Input Gating for Fast Counters, State Machines, Address Decoder

📥 Download Datasheet

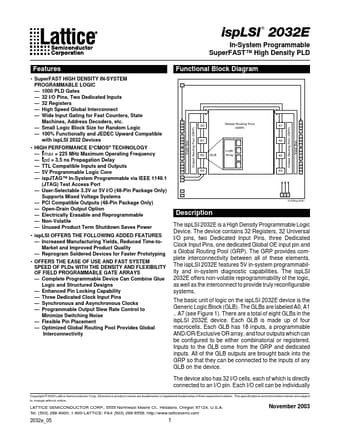

Preview of ispLSI2032E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ispLSI2032E
Manufacturer
Lattice Semiconductor
File Size
132.93 KB
Datasheet
ispLSI2032E-LatticeSemiconductor.pdf
Description
In-System Programmable SuperFAST High Density PLD
