ispLSI2032VE

3.3V In-System Programmable High Density SuperFAST PLD

ispLSI2032VE Features

* SuperFAST HIGH DENSITY IN-SYSTEM PROGRAMMABLE LOGIC

* 1000 PLD Gates

* 32 I/O Pins, Two Dedicated Inputs

* 32 Registers

* High Speed Global Interconnect

* Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.

* Small Log

ispLSI2032VE General Description

The ispLSI 2032VE is a High Density Programmable Logic Device that can be used in both 3.3V and 5V systems. The device contains 32 Registers, 32 Universal I/O pins, two Dedicated Input Pins, three Dedicated Clock Input Pins, one dedicated Global OE input pin and a Global Routing Pool (GRP). The GRP .

ispLSI2032VE Datasheet (179.33 KB)

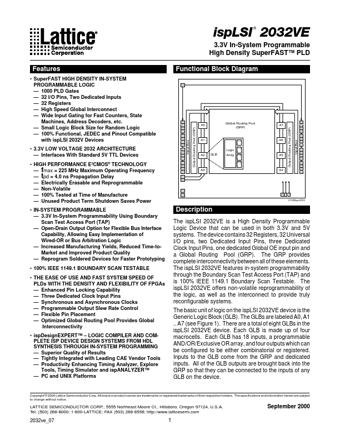

Preview of ispLSI2032VE PDF

Datasheet Details

Part number:

ispLSI2032VE

Manufacturer:

Lattice Semiconductor

File Size:

179.33 KB

Description:

3.3v in-system programmable high density superfast pld.
