LCG35PIS120B2 Datasheet - Lcore

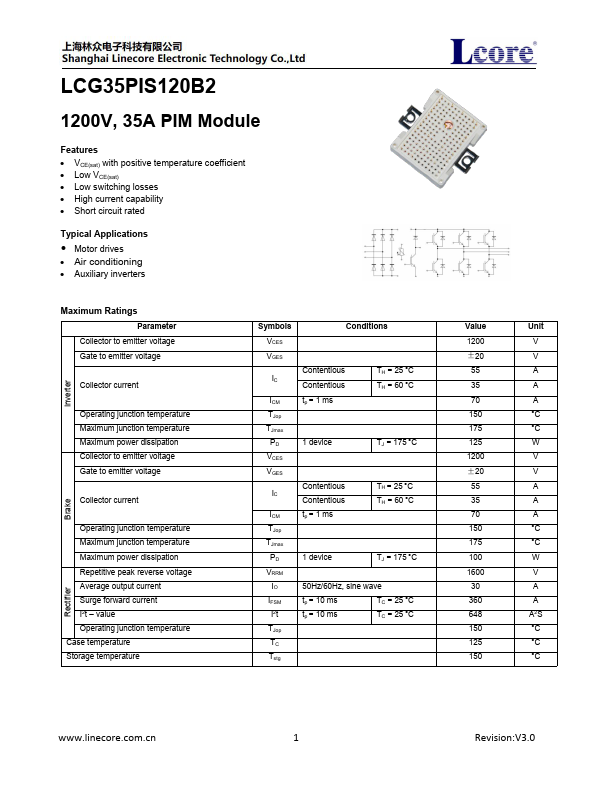

datasheet Preview Page 1 from Datasheet4u.com

LCG35PIS120B2 1200V 35A PIM Module

LCG35PIS120B2 1200V, 35A PIM Module .

LCG35PIS120B2-Lcore.pdf

Preview of LCG35PIS120B2 PDF

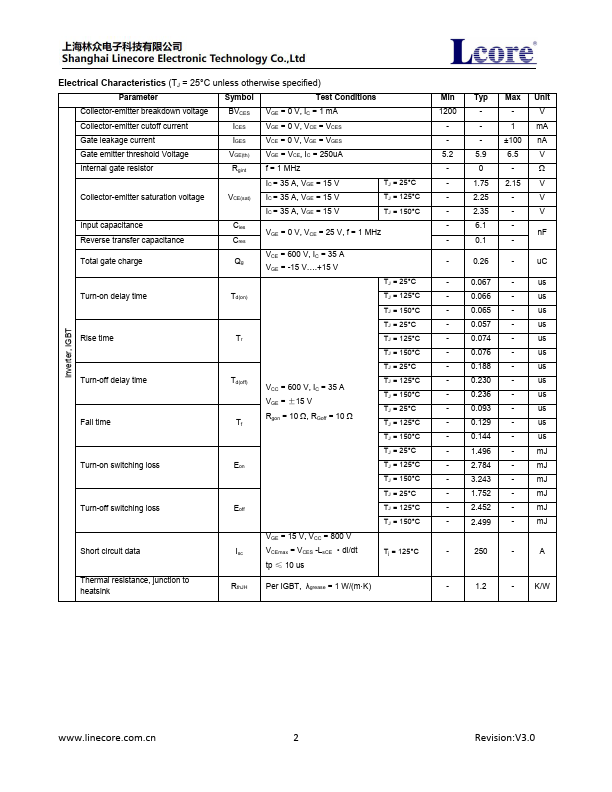

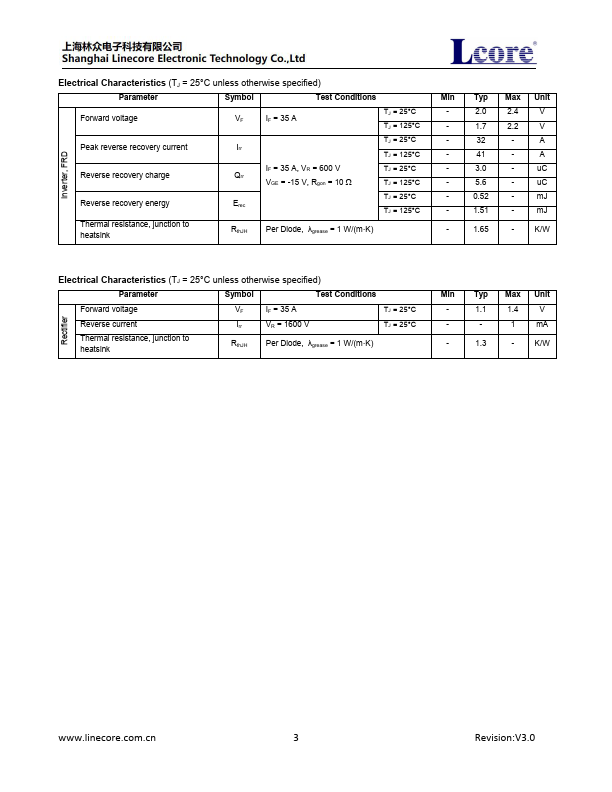

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

LCG35PIS120B2

Manufacturer:

Lcore

File Size:

1.05 MB

Description:

1200V 35A PIM Module

Features

* VCE(sat) with positive temperature coefficient
* Low VCE(sat)
* Low switching losses
* High current capability

Applications

* Motor drives
* Air conditioning
* Auxiliary inverters Rectifier Brake Inverter Maximum Ratings Parameter Collector to emitter voltage Gate to emitter voltage Collector current Operating junction temperature Maximum junction temperature Maximum power dissipation Collector to emitter
