LC9005

High-Precision Low Voltage Detector

Leadchip

LC9005 Features

* High-precision detection Voltage： ±3%

* Detection Voltage：0.9V~6.0V (in 0.1V steps)

* Precise hysteresis：4% typ.

* Operating Voltage range：0.7V~10V

* Ultra-low current consumption：500nA typ. (at VDD＝3.0V) APPLICATIONS

* Power monitor for portable equ

LC9005 General Description

LC9005 is a series of high precision voltage detector with ultra low current consumption (500nA typ. at Vdd=3.0V). It can work at very low voltage, which makes it perfect for system reset. LC9005 is composed of high precision voltage reference, comparator, output driver and resistor array. Internall.

LC9005 Datasheet (294.68 KB)

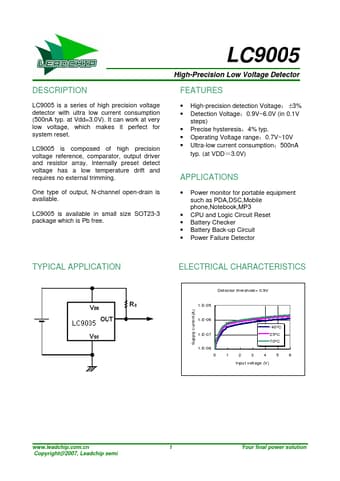

LC9005 Datasheet Preview — Preview of LC9005 PDF

Datasheet Details

Part number:

LC9005

Manufacturer:

Leadchip

File Size:

294.68 KB

Description:

High-precision low voltage detector.
