LD5523E Datasheet, Controller, Leadtrend Technology

LD5523E Features

• Controller
• Secondary-side feedback control with quasi-resonant + CCM operation
• Low Startup Current (<1A)
• 0.285mA Ultra-low operating current at light load

PDF File Details

Part number:

LD5523E

Manufacturer:

Leadtrend Technology

File Size:

921.17kb

Download:

📄 Datasheet

Description:

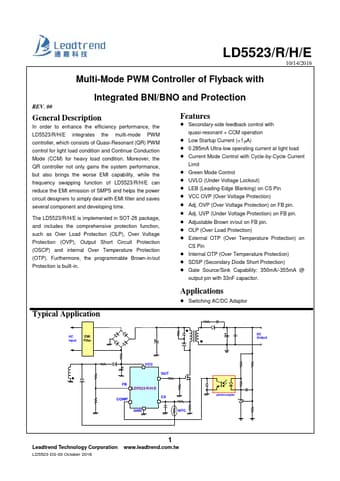

Multi-mode pwm controller. In order to enhance the efficiency performance, the LD5523/R/H/E integrates the multi-mode PWM controller, which consists of Quasi-Re

LD5523E Application

• Applications
• Switching AC/DC Adaptor Typical Application AC input EMI Filter DC Output VCC OUT FB LD5523/R/H/E COMP CS GND NTC
