LA4021-11 Datasheet - Ledtech Electronics

LA4021-11 Display

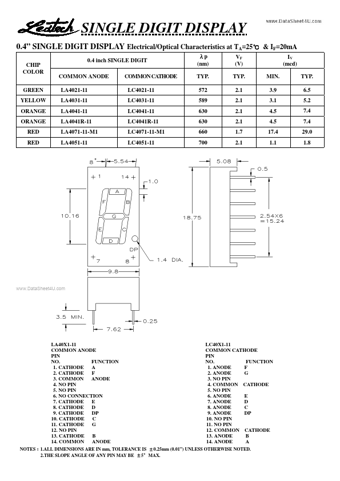

SINGLE DIGIT DISPLAY 0.4” SINGLE DIGIT DISPLAY Electrical/Optical Characteristics at TA=25℃ & IF=20mA CHIP COLOR GREEN YELLOW ORANGE ORANGE RED RED 0.4 inch SINGLE DIGIT COMMON ANODE LA4021-11 LA4031-11 LA4041-11 LA4041R-11 LA4071-11-M1 LA4051-11 COMMON CATHODE LC4021-11 LC4031-11 LC4041-11 LC4041R-11 LC4071-11-M1 LC4051-11 λp (nm) TYP. 572 589 630 630 660 700 VF (V) TYP. 2.1 2.1 2.1 2.1 1.7 2.1 MIN. 3.9 3.1 4.5 4.5 17.4 1.1 IV (mcd) TYP. 6.5 5.2 7.4 7.4 29.0 1.8 www.DataSheet4U.com LA40X1-11 .

LA4021-11 Datasheet (287.39 KB)

LA4021-11 Datasheet Preview — Preview of LA4021-11 PDF

Datasheet Details

Part number:

LA4021-11

Manufacturer:

Ledtech Electronics

File Size:

287.39 KB

Description:

Display.
