LA4031-11, LA4041-11 Datasheet - Ledtech Electronics

LA4031-11 Display

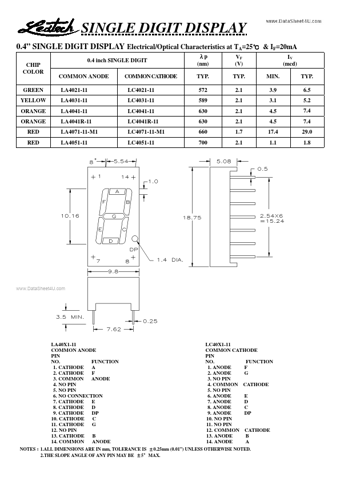

SINGLE DIGIT DISPLAY 0.4” SINGLE DIGIT DISPLAY Electrical/Optical Characteristics at TA=25℃ & IF=20mA CHIP COLOR GREEN YELLOW ORANGE ORANGE RED RED 0.4 inch SINGLE DIGIT COMMON ANODE LA4021-11 LA4031-11 LA4041-11 LA4041R-11 LA4071-11-M1 LA4051-11 COMMON CATHODE LC4021-11 LC4031-11 LC4041-11 LC4041R-11 LC4071-11-M1 LC4051-11 λp (nm) TYP. 572 589 630 630 660 700 VF (V) TYP. 2.1 2.1 2.1 2.1 1.7 2.1 MIN. 3.9 3.1 4.5 4.5 17.4 1.1 IV (mcd) TYP. 6.5 5.2 7.4 7.4 29.0 1.8 www.DataSheet4U.com LA40X1-11 .

LA4041-11_LedtechElectronics.pdf

This datasheet PDF includes multiple part numbers: LA4031-11, LA4041-11. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LA4031-11, LA4041-11

Manufacturer:

Ledtech Electronics

File Size:

287.39 KB

Description:

Display.

Note:

This datasheet PDF includes multiple part numbers: LA4031-11, LA4041-11.
Please refer to the document for exact specifications by model.
