DSK115, DSK12 - SCHOTTKY BARRIER RECTIFIER

Leiditech

📥 Download Datasheet

DSK115 Datasheet Preview — This datasheet PDF includes multiple part numbers: DSK115, DSK12. Please refer to the document for exact specifications by model.

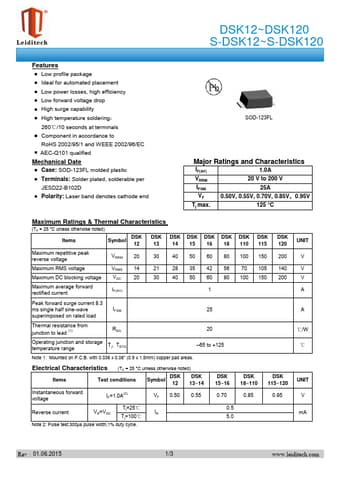

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DSK115, DSK12
Manufacturer	Leiditech
File Size	244.89 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	DSK12-Leiditech.pdf
Note	This datasheet PDF includes multiple part numbers: DSK115, DSK12. Please refer to the document for exact specifications by model.

DSK115 Product details

Features

Low profile package.
Ideal for automated placement.
Low power losses, high efficiency.
Low forward voltage drop.
High surge capability.
High temperature soldering： 260℃/10 seconds at terminals.
Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC.
AEC-Q101 qualified Mechanical Date.
Case: SOD-123FL molded plastic.
Terminals: Solder plated, solderable per JESD22-B102D.
Polarity: Laser band denotes cathode end SOD-123FL Major Ratin.
