SDA0501P - 1-Line Uni-directional TVS Diode

Datasheet Summary

Features

  • Ultra low leakage: nA level.
  • Operating voltage: 5V.
  • Low clamping voltage.
  • Complies with following standards:.
  • IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV.
  • IEC61000-4-4 (EFT) 40A (5/50ns).
  • IEC61000-4-5 (Lightning) 2A (8/20μs).
  • RoHS Compliant.

📥 Download Datasheet

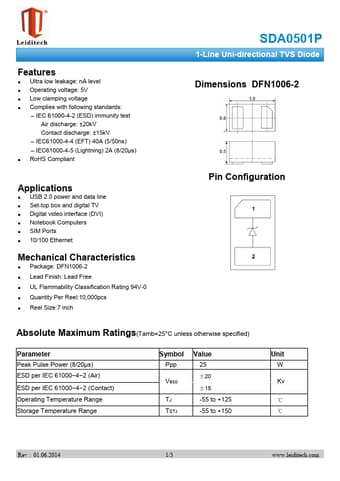

Datasheet preview – SDA0501P

Datasheet Details

Part number SDA0501P
Manufacturer Leiditech
File Size 188.31 KB
Description 1-Line Uni-directional TVS Diode
Datasheet download datasheet SDA0501P Datasheet
Additional preview pages of the SDA0501P datasheet.

📁 Similar Datasheet

  • SDA05 - PNP Darlington 3-phase motor drive (Sanken)
  • SDA05S120 - Silicon Carbide Power Schottky Diode (SemiSouth)
  • SDA004 - DATA BUS TRANSIENT SUPPRESSOR (Diodes Incorporated)
  • SDA006 - DATA BUS TRANSIENT SUPPRESSOR (Diodes Incorporated)
  • SDA01 - PNP Darlington General purpose (Sanken)
  • SDA03 - Surface-mount Power Transistor Array (Sanken)
  • SDA04 - Surface-mount Power Transistor Array (Sanken)
  • SDA0810 - (SDA1810 / SDA0810) Microprocessor Compatible 10-Bit A/D Converters (Siemens)
  • SDA0812A - (SDA1812D / SDA0812A) 12-Bit A/D Converter (Siemens)
  • SDA-1000 - GaAs Distributed Amplifier (RF Micro Devices)
Other Datasheets by Leiditech

Full PDF Text Transcription

Click to expand full text
Features ● Ultra low leakage: nA level ● Operating voltage: 5V ● Low clamping voltage ● Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) 2A (8/20μs) ● RoHS Compliant Applications ● USB 2.
