SDA0511CDN - TVS DIODE

SDA0511CDN Description

.

SDA0511CDN Features

* Ultra small package: 1.0x0.6x0.5mm
* Protects one data or power line
* Ultra low leakage: nA level
* Low operating voltage: 5V
* Low clamping voltage
* 2-Pin leadless package
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge:

SDA0511CDN Applications

* Power Management
* Industrial Application
* Power Supply Protection
* Many other portable devices SDA0511CDN 1-Line Bi-directional TVS Diode Dimensions DFN1006 . 0.6 - 0.5 Pin Configuration Mechanical Characteristics
* Package: DFN1006
* Lead Finish: NiPdAu
* Cas

📥 Download Datasheet

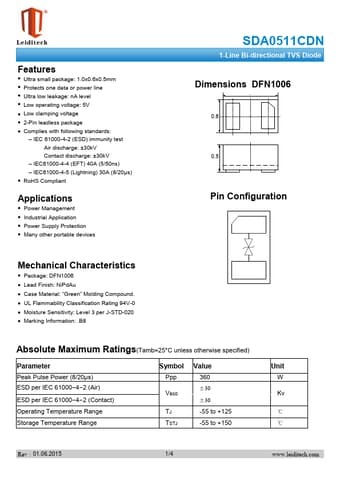

Preview of SDA0511CDN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDA0511CDN
Manufacturer
Leiditech
File Size
1.33 MB
Datasheet
SDA0511CDN-Leiditech.pdf
Description
TVS DIODE
