SMDJ200A, SMDJ5.0A Datasheet - Leiditech

SMDJ200A 3000W Transient Voltage Suppressor

SMDJ200A Features

* Glass passivated or planar junction.

* Excellent clamping capability.

* Repetition rate (duty cycle): 0.01%.

* Typical IR less than 1μA above 10V.

* Low profile package and low inductance.

* 3000W peak pulse power capability at 10×1000μs waveform.

* Fast response time:

SMDJ5.0A-leiditech.pdf

This datasheet PDF includes multiple part numbers: SMDJ200A, SMDJ5.0A. Please refer to the document for exact specifications by model.

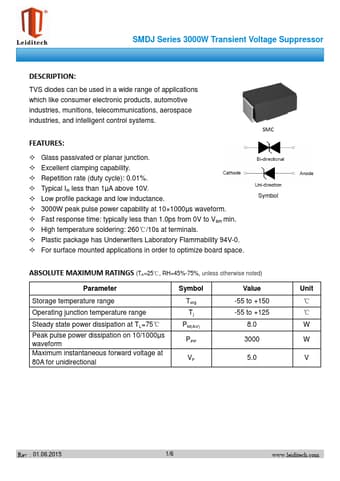

SMDJ200A Datasheet Preview Page 2 SMDJ200A Datasheet Preview Page 3

Datasheet Details

Part number:

SMDJ200A, SMDJ5.0A

Manufacturer:

Leiditech

File Size:

785.64 KB

Description:

3000w transient voltage suppressor.

Note:

This datasheet PDF includes multiple part numbers: SMDJ200A, SMDJ5.0A.
Please refer to the document for exact specifications by model.
