SMDJ220A Datasheet - Leiditech

SMDJ220A 3000W Transient Voltage Suppressor

SMDJ220A Features

* Glass passivated or planar junction.

* Excellent clamping capability.

* Repetition rate (duty cycle): 0.01%.

* Typical IR less than 1μA above 10V.

* Low profile package and low inductance.

* 3000W peak pulse power capability at 10×1000μs waveform.

* Fast response time:

SMDJ220A Datasheet (785.64 KB)

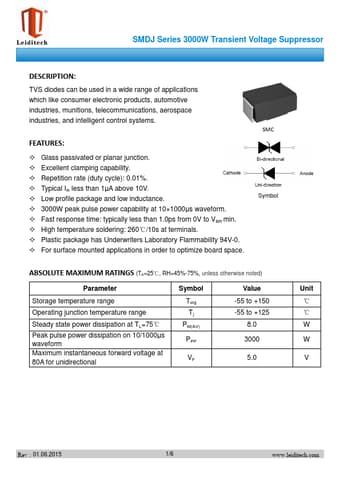

Preview of SMDJ220A PDF
SMDJ220A Datasheet Preview Page 2 SMDJ220A Datasheet Preview Page 3

Datasheet Details

Part number:

SMDJ220A

Manufacturer:

Leiditech

File Size:

785.64 KB

Description:

3000w transient voltage suppressor.
