SMDJ8.0A

The SMDJ8.0A is 3000W Transient Voltage Suppressor designed by Leiditech.

Product Overview

Leiditech

Datasheet Details

Part number	SMDJ8.0A, SMDJ5.0A
Manufacturer	Leiditech
File Size	785.64 KB
Description	3000W Transient Voltage Suppressor
Datasheet	SMDJ5.0A-leiditech.pdf
Note	This datasheet PDF includes multiple part numbers: SMDJ8.0A, SMDJ5.0A. Please refer to the document for exact specifications by model.

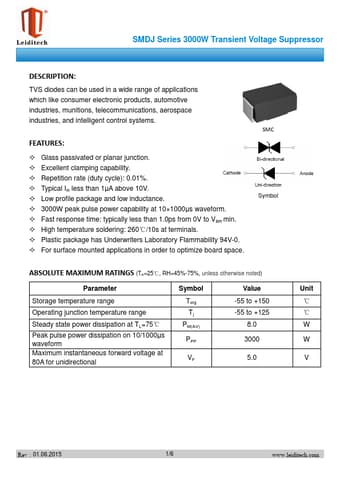

Additional preview pages of the SMDJ8.0A datasheet.

Product details

Description

TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems.

Features

Glass passivated or planar junction.
Excellent clamping capability.
Repetition rate (duty cycle): 0.01%.
Typical IR less than 1μA above 10V.
Low profile package and low inductance.
3000W peak pulse power capability at 10×1000μs waveform.
Fast response time: typically less than 1.0ps from 0V to VBR min.
High temperature soldering: 260℃/10s at terminals.
Plastic package has Underwriters Laboratory Flammability 94V-0.
For surface mounted.
