TPD4S010DQAR - TVS DIODE

Leiditech

📥 Download Datasheet

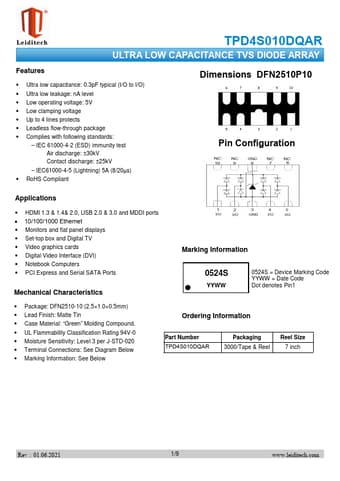

TPD4S010DQAR Datasheet Preview — Preview of TPD4S010DQAR PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPD4S010DQAR
Manufacturer	Leiditech
File Size	738.19 KB
Description	TVS DIODE
Datasheet	TPD4S010DQAR-Leiditech.pdf

TPD4S010DQAR Product details

Features

Ultra low capacitance: 0.3pF typical (I/O to I/O).
Ultra low leakage: nA level.
Low operating voltage: 5V.
Low clamping voltage.
Up to 4 lines protects.
Leadless flow-through package.
Complies with following standards:.
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±25kV.
IEC61000-4-5 (Lightning) 5A (8/20µs).
RoHS Compliant Dimensions DFN2510P10 Pin Configuration.
