TPD4S014

USB Charger Port Protection

TPD4S014 Features

* 1 Input Voltage Protection at VBUS up to 28 V

* Low Ron nFET Switch

* Supports > 2 A Charging Current

* ESD Performance D+/D

* /ID/VBUS Pins:

* ±15-kV Contact Discharge (IEC 61000-4-2)

* ±15-kV Air Gap Discharge (IEC 61000-4-2)

* Overvol

TPD4S014 General Description

The TPD4S014 is a single-chip solution for USB charger port protection. This device offers low capacitance transient voltage suppressor (TVS) electrostatic discharge (ESD) clamps for the D+, D

*, and standard capacitance for the ID pin. On the VBUS pin, this device provides overvoltage protec.

TPD4S014 Datasheet (3.17 MB)

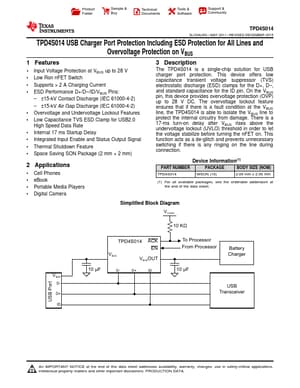

Preview of TPD4S014 PDF

Datasheet Details

Part number:

TPD4S014

Manufacturer:

Texas Instruments ↗

File Size:

3.17 MB

Description:

Usb charger port protection.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPD4S014 SLVSAU0G

* MAY 2011

* REVISED DECEM.
