TPD4104AK

DC Brushless Motor-Driver

TPD4104AK Features

* Bootstrap circuit gives simple high side power supply. Bootstrap diodes are built in. A dead time can be set as a minimum of 1.4 µs, and it is the best for a Sine-wave from drive. 3-phase bridge output using IGBTs. FRDs

TPD4104AK General Description

Pin No. 1 2 Symbol HU HV Pin Description The control terminal of IGBT by the side of U top arm. It turns off more than by 1.5V. It turns on more than by 3.5V. The control terminal of IGBT by the side of V top arm. It turns off more than by 1.5V. It turns on more than by 3.5V. The control terminal .

TPD4104AK Datasheet (535.62 KB)

Preview of TPD4104AK PDF

Datasheet Details

Part number:

TPD4104AK

Manufacturer:

Toshiba ↗

File Size:

535.62 KB

Description:

Dc brushless motor-driver.

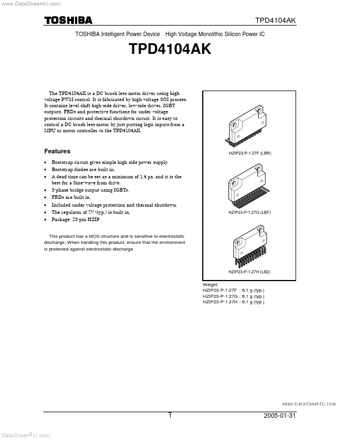

www.DataSheet4U.com TPD4104AK TOSHIBA Intelligent Power Device High Voltage Monolithic Silicon Power IC TPD4104AK The TPD4104AK is a DC brush less m.
