TPD4105AK

DC Brushless Motor-Driver

TPD4105AK Features

* Bootstrap circuit gives simple high side power supply. Bootstrap diodes are built in. A dead time can be set as a minimum of 1.4 µs, and it is the best for a Sine-wave from drive. 3-phase bridge output using IGBTs. FRDs

TPD4105AK General Description

Pin No. 1 2 Symbol HU HV Pin Description TPD4105AK The control terminal of IGBT by the side of U top arm. It turns off more than by 1.5V. It turns on more than by 3.5V. The control terminal of IGBT by the side of V top arm. It turns off more than by 1.5V. It turns on more than by 3.5V. The contr.

TPD4105AK Datasheet (196.17 KB)

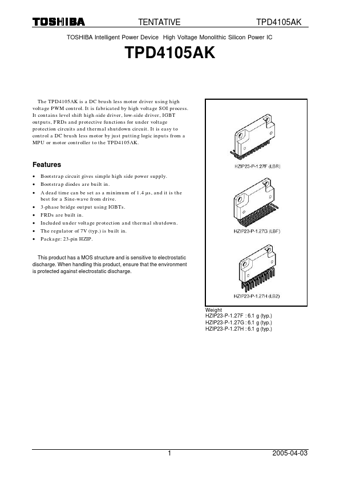

Preview of TPD4105AK PDF

Datasheet Details

Part number:

TPD4105AK

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

196.17 KB

Description:

Dc brushless motor-driver.
www.DataSheet4U.com TENTATIVE TPD4105AK TOSHIBA Intelligent Power Device High Voltage Monolithic Silicon Power IC TPD4105AK The TPD4105AK is a DC .
