L2SC4083NWT1 Datasheet - Leshan Radio Company

L2SC4083NWT1 High-Frequency Amplifier Transistor

LRC LESHAN RADIO COMPANY,LTD. High-Frequency Amplifier Transistor L2SC4083NWT1 z www.DataSheet4U.com 1 BASE 3 COLLECTOR 3 1 2 EMITTER 2 SC-70/SOT-323 Absolute maximum ratings (Ta=25 oC) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Limits 20 11 3 50 0.2 150 - 55~+150 Unit V V V mA W o o C C Driver Marking L2SC4083NWT1=4N Electrical.

L2SC4083NWT1 Datasheet (90.16 KB)

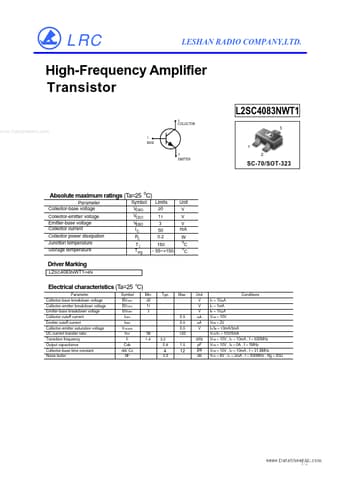

Preview of L2SC4083NWT1 PDF
L2SC4083NWT1 Datasheet Preview Page 2

Datasheet Details

Part number:

L2SC4083NWT1

Manufacturer:

Leshan Radio Company

File Size:

90.16 KB

Description:

High-frequency amplifier transistor.
