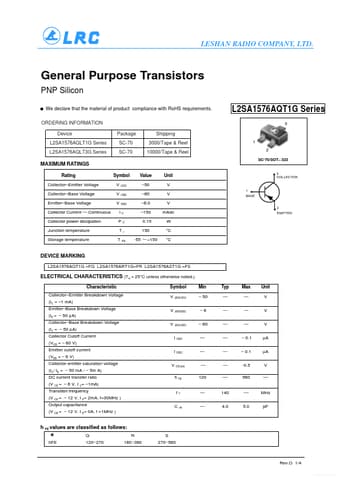

LESHAN RADIO COMPANY, LTD.
General Purpose Transistors
PNP Silicon
z We declare that the material of product compliance with RoHS requirements.
ORDERING INFORMATION Device L2SA1576AQLT1G Series L2SA1576AQLT3G Series Package SC-70 SC-70 Shipping 3000/Tape & Reel 10000/Tape & Reel
1 2
SC-70/SOT– 323
L2SA1576AQT1G Series
3
MAXIMUM RATINGS
Rating Collector–Emitter Voltage Collector–Base Voltage Emitter–Base Voltage Collector Current — Continuous Collector power dissipation Junction temperature Storage temperature Symbol V CEO V CBO V
EBO
Value –50 –60 –6.0 –150 0.15 150 -55 ~+150
Unit V V V mAdc W °C °C
1 BASE
3 COLLECTOR
IC PC Tj T stg
2 EMITTER
DEVICE MARKING
L2SA1576AQT1G =FQ L2SA1576ART1G=FR L2SA1576AST1G =FS
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted.
L2SA1576AQT1G Datasheet
