LBAS16WT1 Datasheet - Leshan Radio Company

LBAS16WT1 - Switching Diode

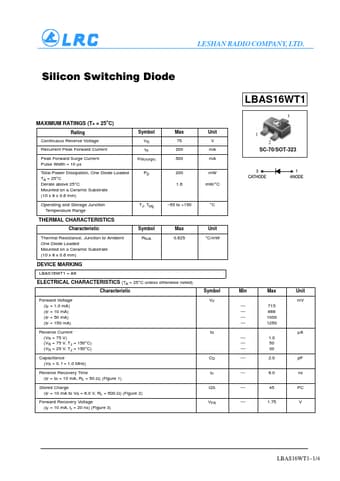

LESHAN RADIO COMPANY, LTD. Silicon Switching Diode MAXIMUM RATINGS (TA = 25oC) Rating Continuous Reverse Voltage Recurrent Peak Forward Current Peak Forward Surge Current Pulse Width = 10 µs Symbol VR IR IFM(surge) Max 75 200 500 Total Power Dissipation, One Diode Loaded TA = 25°C Derate above 25°C Mounted on a Ceramic Substrate (10 x 8 x 0.6 mm) PD 200 1.6 Operating and Storage Junction Temperature Range TJ, Tstg 55 to +150 THERMAL CHARACTERISTICS Characteristic Thermal Resi.

LBAS16WT1-LeshanRadioCompany.pdf

LBAS16WT1 Datasheet Preview — Preview of LBAS16WT1 PDF

Datasheet Details

Part number:

LBAS16WT1

Manufacturer:

Leshan Radio Company

File Size:

158.59 KB

Description:

Switching diode.
