LBC846ALT3G - General Purpose Transistors

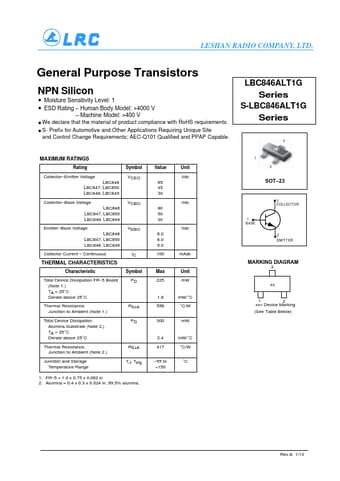

LESHAN RADIO COMPANY, LTD. General Purpose Transistors NPN Silicon Moisture Sensitivity Level: 1 ESD Rating Human Body Model: >4000 V ESD Rating Machine Model: >400 V We declare that the material of product compliance with RoHS requirements. S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. LBC846ALT1G Series S-LBC846ALT1G Series 3 MAXIMUM RATIN.
LBC846ALT3G Features
* C 0.5
0.4
0.3
0.2
0.0001
0.001
0.01
0.1
IC, COLLECTOR CURRENT (A)
Figure 20. Base Emitter Voltage vs. Collector Current
VBE(sat), BASE
* EMITTER SATURATION VOLTAGE (V)
Rev.A 8/13
VCE, COLLECTOR-EMITTER VOLTAGE (V)
LESHAN RADIO COMPANY, LTD. LBC846ALT1G Series
S-LBC846ALT1G Series
