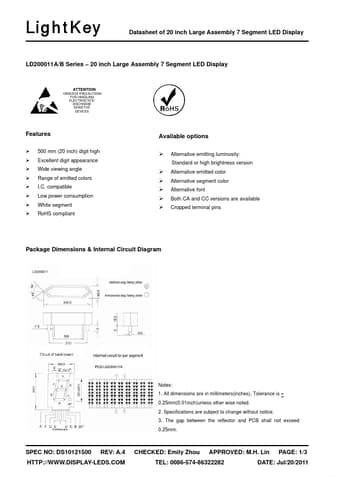

LD200011APG, LD200011A - 20 inch Large Assembly 7 Segment LED Display

LightKey

Datasheet Details

Part number	LD200011APG, LD200011A
Manufacturer	LightKey
File Size	129.98 KB
Description	20 inch Large Assembly 7 Segment LED Display
Datasheet	LD200011A-LightKey.pdf
Note	This datasheet PDF includes multiple part numbers: LD200011APG, LD200011A. Please refer to the document for exact specifications by model.

¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ 500 mm (20 inch) digit high Excellent digit appearance Wide viewing angle Range of emitted colors I. C. compatible Low power consumption White segment RoHS compliant Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative segment color Alternative font Both CA and CC versions are available Cropped terminal pins Package Dimensions & Internal Circuit Diagram Notes: 1. All dimensions are in millimeter.
